Production Systems

If your website is going to have 1000s of requests every minute, you will need to have more than one server. 1 server will simply not be able to handle that many requests. To solve this problem, you need a proxy that forwards the requests to multiple servers. A Load Balancer is a proxy that forwards requests to different server to divide the load for each server.

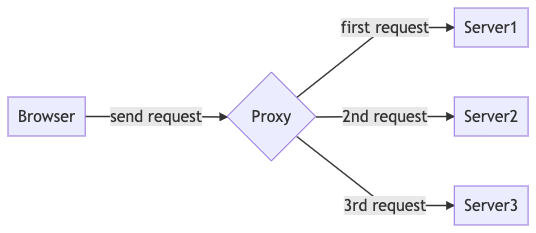

graph LR
A[Browser] -->|send request| C{Proxy}
C -->|first request| D[Server1]
C -->|2nd request| E[Server2]
C -->|3rd request| F[Server3]

When the server receives the request from the proxy, request.ip will be the address of the Proxy. The actual request of the original sender will be in the X-Forwarded-For request header. Your server send a response directly to that IP Address.

Example library you can use for proxying request: node-http-proxy

In the example:

• GET requests to /hello are forwarded to 192.168.1.87
• GET requests to /world are forwarded to 192.168.1.88

const express = require('express')
const httpProxy = require('http-proxy')

const proxy = httpProxy.createProxyServer({})
const app = express()

app.get('/hello', (req, res) => {
  proxy.web(req, res, {
    target: 'http://192.168.1.87:3001'
  })
})

app.get('/world', (req, res) => {
  proxy.web(req, res, {
    target: 'http://192.168.1.88:3001'
  })
})

app.listen(80)

Use cases of a proxy:

• HTTPS Certificates
• Load balancing
• Securing servers so the real servers cannot be directly accessible

HTTPS

You can no longer serve traffic on http for security reasons. Browsers will only allow https requests to go through by default. To enable https, you must provide a certificate to prove that you own the domain name. This certificate comes in two parts: Key and Cert. There are many tools like acme.sh to help you generate certificates quickly for free, powered by Let's Encrypt.

Let's Encrypt signs the certificates for you to verify the authenticity of these certificates. All browsers trust certificates signed by Let's Encrypt, but if you are behind a corporate network, your company may not allow access to websites signed by Let's Encrypt.

Once you have your certificate files, you can start your app like this

const express = require('express')
const fs = require('fs')
const https = require('https')
const app = express()

const server = https.createServer(
  {
    key: fs.readFileSync('server.key'),
    cert: fs.readFileSync('server.cert')
  },
  app
)

server.listen(443, function () {
  console.log('Example app listening on port 443! Go to https://localhost:443/')
})

Listening to port 443 may require you to run your application with sudo. Since only 1 application can run on a port, if you need more servers handling your traffic, you need a proxy that listens to port 443 and sends back the HTTPS certificates, then proxies the request to the server.

MyProxy is an application that helps you setup a proxy server, gets you a HTTPS certificate, and helps you deploy your code quickly!

Containers

In challenge #2: Did you see a security issue? What if someone puts in the following command:

rm -rf ~/

All the files for every application would be removed. Services like freedomains.dev hosts many people's applications. If a user executed the command above into their app, every application would be deleted.

This is why we need containers, so each application runs as its own virtual machine. This way, a malicious application will not be able to affect other applications running on the server.

Docker is a well known company that helps manage containers. When you create a container, you may want to specify which applications your application may need to run. Examples:

• Database like MySQL, CockroachDB, Neo4J, etc. and their version.
• NodeJS and the version that your app needs.

Kubernetes

Containers are not only good for security, with containers, you can deploy your application to multiple servers and make sure every server has the same code and system setup.

If you have 1000 servers and you need to make updates, do you manually update each one? No.

Kubernetes is an application that allows you to upload a container configuration, and it will deploy the container to every single server.

Caching

In the above examples, you stored data in both memory and files. Whenever you create an array or object, the data is stored in memory. Computer access the memory immediately.

const data = {...data...}
const a = data.name // instant

// The slower your hard drive, the longer `fs.readFile` will take to finish
fs.readFile('...file path...', (content) => {
  ... // content is the data from the file...
})

In contrast, files are stored in hard drives. To get data from a file, the computer must first find where the file is located in the hard drive and then put the data into the memory.

In the example above, data.name is instant, whereas fs.readFile takes awhile so you have to pass in a function to run when the reading is complete.

Some example of hard drives:

Cassette tapes: These are specialized data usually for audio recording music

DVDs: These store data!

Harddrives: Internally, it looks like a bunch of shiny DVDs stacked together.

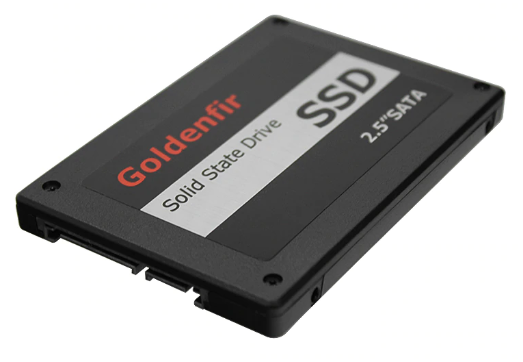

SSD: These hard drives are FAST. It doesn't have a spinning disk (unlike hard drives) so finding and storing files on these can be up to many times faster than the hard drive.

Since it takes time to lookup files on hard drives, fs.readFile function requires you to pass in a function that gets run when the file is found and loaded into memory.

The Internet

When you type a url into the browser and hit enter, your browser is sending a request to another computer (server). When your browser receives the response from the server (usually HTML), it follows the instructions in the HTML to display the website.

This section will go over some theory about what happens behind the scenes and the relationship between your computer, router, modem, and the internet.

By the end of this section, you will know enough to turn your computer into a server and make it publicly accessible by anybody with in the world with uncensored internet access.

Router (Intranet)

The router provides WIFI / ethernet ports that your computer and other electronics gadgets can connect to. If you go to an electronics store and buy a wireless router, you can bring it home and immediately setup a WIFI network for your devices to connect to.

Whenever a device connects to a router, the router gives the device an IP Address. An IP Address specifies the device's address. Since the router keeps track of all devices connected to it via the IP Address, the router helps facilitate communication between all devices.

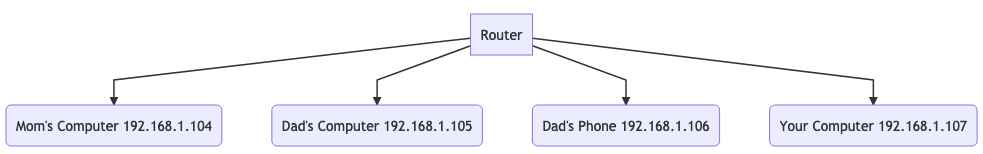

graph TD
A[Router] --> B(Mom's Computer 192.168.1.104)
A --> C(Dad's Computer 192.168.1.105)
A --> D(Dad's Phone 192.168.1.106)
A --> E(Your Computer 192.168.1.107)

In the above example, since all devices are connected to the same router, any device can send a request to your computer using your computer's IP Address.

Server

This section will show you how to create an app so your computer can start accepting incoming requests. The most popular library to do this is express. Create a JavaScript file and add the following code:

After you run the app, open up a browser (on the same computer running the app) and send a request to yourself! http://127.0.0.1:8123

• When your computer sees this IP Address 127.0.0.1, it will send the request directly to the application listening to the specified port (8123)

Other devices can send a request to your application if they know your IP Address.

How To Find Your Device's IP Address

MacOS

If your ip address is 192.168.1.107, any device that is connected to the same router can send a request to 192.168.1.107:8123 and receive a response, Hello There . Try it with your phone or any other devices connected to the same router.

Intranet

In our examples above, all devices are connected to your router but the router is not connected to a modem (explained below). Therefore, even though devices connected to the router can send requests to each other, none of the devices has access to the internet. This connectivity to each other, not the internet, is called an Intranet.

For security reasons, most financial companies have user's data in an intranet, inaccessible to hackers outside the company. Only employees connected to the company's internal network can have access to the data.

Exercises

1. Create a server that listens to port 8124

   Answer

   const express = require('express')
   const app = express()

   app.get('/', (req, res) => {
     res.send('<h1>Hello!</h1>')
   })

   app.listen(8124)



2. Create a server that supports 2 paths (/message, /greeting) and listens to port 8125.

   Answer

   const express = require('express')
   const app = express()

   app.get('/message', (req, res) => {
     res.send('<h1>Hello! You have a message!</h1>')
   })

   app.get('/greeting', (req, res) => {
     res.send('<h1>Greetings!</h1>')
   })

   app.listen(8125)



3. Create a folder called public. Put some files in there. Then create a server that support a path /files. When your server receives a request, send back the names of all the files in the public folder.

   Hint

   When you receive a request, use fs.readdir to read the public folder directory.

   fs.readdir('./public', (err, files) => {
     // Create your html string from the `files` array
     // Send back the response!
   })



   Answer

   const express = require('express')
   const fs = require('fs')
   const app = express()

   app.get('/files', (req, res) => {
     fs.readdir('./public', (err, files) => {
       const str = files.reduce((acc, fileName) => {
         return acc + `<h1>${fileName}</h1>`
       })
       res.send(str)
     })
   })

   app.listen(8123)



4. Let's slow down your path! Support 2 paths (/normal, /slow). When /slow receives a request, send back a response after waiting 2 seconds. Make the user wait!

   Answer

   const express = require('express')
   const app = express()

   app.get('/normal', (req, res) => {
     res.send('<h1>Hello! Normal Speed</h1>')
   })

   app.get('/slow', (req, res) => {
     setTimeout(() => {
       res.send('<h1>Hello! Normal Speed</h1>')
     }, 2000)
   })

   app.listen(8125)



5. After you run express function to create a server object, you can serve any files you want if you run app.use( express.static('myFiles') )

   In the same folder that you wrote the code for the server, create a folder called myFiles and then add some files in there (for example, song.mp3 as a music file)

   const express = require('express')
   const app = express()
   app.use( express.static('myFiles') )
   ...
   app.listen(8998)



   With the code above, you can go to [http://127.0.0.1:8998/song.mp3](http://127.0.0.1:8998/song.mp3) and the browser should play the music file

   Exercise: Create a folder called public. Build a website so that when someone goes to your website, the can see all the files inside public. When they click on the file, they view the file on the browser. (Hint: You can use the a tag to link to files)

Modem

Authentication

Company → Company (Facebook + Oauth)

User → Company (Facebook)

System Design

DNS name resolution

Cookies and Privacy

Example of Google as an add tracker under the false pretense of giving merchants free analytics data.

But unfortunately, google is building a profile of everything about you, without you knowing Google is even doing that in the background. WTF. Good thing is, there are companies fighting back already! DDG and apple.com.

Links to read more

• How to protect yourself
• Why would I care?
  • Negative stats attributed towards you

Web Performance

How to make your websites FAST

Performant front-end architecture

Concepts

HTML

Critical Rendering Path

Header

Accessibility

Mobile Friendly

AWS

AWS

AWS

S3

Stores files. When you put files into your server (or public) folder, you get url. S3 does the same thing.

Lambda

Upload a npm project. And then you can click on a button (like play) to run that function.

SES

Service that handles incoming and outgoing email requests

System Design

A list of steps to tackle system design problems. System design means to design a system that works for the use case. We will list the steps by order:

1. User experience - Its important to 100% understand how the user will be using your app. Think about what data is needed to power their app and when.
2. APIs - You need to design APIs to power the user experience in step 1. Think about making it fast for the user. What data is static? The data that are not volatile can be cached locally on the browser.
3. Scaling - What if suddenly you have 1000 users? 1 million? 1 billion?
   1. The first thing you should always mention on the server is caching. Fetching from the database is the most expensive because you can easily have 100s of servers, but only a few databases. The more databases you have, the more syncing headaches you have.
      1. Eventually, you will get to the point where you need to update memory first, then update the database.
   2. Eventually, you will need to shard your database (split the database up). There are many ways to split the data. You can split by geo-location, time, etc. This depends on the use case (which is why #1 is so important).
   3. DNS - You need your own nameserver so that during DNS resolution, you can set split the request to different ip addresses so your server don't accidentally get overloaded.

How much load can one server handle?

1 server, 1 core, 5M readers a month. That's 160k / day, 7k / hour, around 116 / minute.

From HN admin - It's hard to count active users because you have to define them in order to count them, and we make a point of not tracking people that much. We can count accounts and unique IPs, and that's about it. But it's basically about 5M readers a month, give or take, as far as we can tell. It grows linearly, with large swings. If you step back 10 feet from the graphs and squint, it's basically a straight line for the last 10 years. We like it that way; we wouldn't want to go full Haskell and avoid success at all costs, but we don't want hockey-stick growth either. HN is not a startup!

It runs on one server. Actually the app server (written in Arc) runs on one core. But we have some caching in front of that for logged-out users.

Reddit is 100x bigger. It's not just that we aren't in their league...our league is not in their league. So the comparison is a little embarrassing. It's hard to count active users because you have to define them in order to count them, and we make a point of not tracking people that much. We can count accounts and unique IPs, and that's about it. But it's basically about 5M readers a month, give or take, as far as we can tell. It grows linearly, with large swings. If you step back 10 feet from the graphs and squint, it's basically a straight line for the last 10 years. We like it that way; we wouldn't want to go full Haskell and avoid success at all costs, but we don't want hockey-stick growth either. HN is not a startup! It runs on one server. Actually the app server (written in Arc) runs on one core. But we have some caching in front of that for logged-out users.
